Custom webhooks
You can integrate Chromatic into other services and script custom behavior to support advanced workflows using webhooks.
- Go to your Chromatic project and click the manage tab in the sidebar. Scroll down to “Integrations”.
- Click the “Add webhook” button in the custom webhook section, then paste your webhook into the input.
If you’re currently using v1 webhooks, read the upgrade guide.
Build updates
When a build’s status changes, we’ll send a POST
request to your webhook with a body that looks like this:
{
"version": 2,
"event": "build",
"build": {
"number": 123,
"branch": "main",
"commit": "f6f223efb3b99b83ac3b0b6ece9f9620619933c1",
"committerName": "John Doe",
"status": "ACCEPTED", // See table below for details
"result": "SUCCESS",
"storybookUrl": "https://5dca7f6a6ce19b00201febb7-yubzntxvow.chromatic.com/",
"webUrl": "https://www.chromatic.com/build?appId=5dca7f6a6ce19b00201febb7&number=123",
"changeCount": 12,
"componentCount": 42,
"specCount": 100,
"project": {
"name": "my-project",
"accountName": "my-org",
"accountAvatarUrl": "https://avatars.githubusercontent.com/u/24584319?s=200",
"webUrl": "https://www.chromatic.com/builds?appId=5dca7f6a6ce19b00201febb7"
}
}
}
Review updates
Similarly, we call your endpoint when a review is created:
{
"version": 2,
"event": "review",
"review": {
"number": 1,
"title": "My review",
"status": "OPEN", // | "MERGED" | "CLOSED"
"baseRefName": "main",
"headRefName": "feature",
"isCrossRepository": false,
"webUrl": "https://www.chromatic.com/review?appId=5dca7f6a6ce19b00201febb7&number=1",
"author": {
"name": "John Doe",
"username": "example",
"avatarUrl": "https://avatars.githubusercontent.com/u/24584319?s=200"
}
}
}
Review decisions
When a reviewer is assigned to a review or they approve the changes, we send an update like this:
{
"version": 2,
"event": "review-decision",
"reviewDecision": {
"status": "PENDING", // | "APPROVED"
"project": {
"name": "my-project",
"accountName": "my-org",
"accountAvatarUrl": "https://avatars.githubusercontent.com/u/24584319?s=200",
"webUrl": "https://www.chromatic.com/builds?appId=5dca7f6a6ce19b00201febb7"
},
"review": {
"number": 1,
"title": "My review",
"status": "OPEN", // | "MERGED" | "CLOSED"
"baseRefName": "main",
"headRefName": "feature",
"isCrossRepository": false,
"webUrl": "https://www.chromatic.com/review?appId=5dca7f6a6ce19b00201febb7&number=1",
"author": {
"name": "John Doe",
"username": "example",
"avatarUrl": "https://avatars.githubusercontent.com/u/24584319?s=200"
}
},
"reviewer": {
"name": "John Doe",
"username": "example",
"avatarUrl": "https://avatars.githubusercontent.com/u/24584319?s=200"
}
}
}
Reviews are currently only supported on unlinked projects. Read more ›
How to integrate custom webhooks
Chromatic will make a post request with the above body to the designated webhook URL. That gives you flexibility to catch the webhook response and customize it to fit the service you’re integrating with.
Most customers set up a simple proxy app to customize the webhook message. Below are some starter projects for known Git providers that use Express as a proxy to help you integrate with Chromatic.
Git provider | Repository |
---|---|
GitHub | Source |
GitLab | Source |
Versioned webhooks
Our webhooks are versioned and won’t introduce breaking changes when we roll out an update. Our requests include the X-Webhook-Version
header (e.g. 2
) to indicate what version was used and a "version"
property in the JSON request body. We may introduce new events or add new fields, properties, or HTTP headers without incrementing the version number, as we consider those to be non-breaking changes.

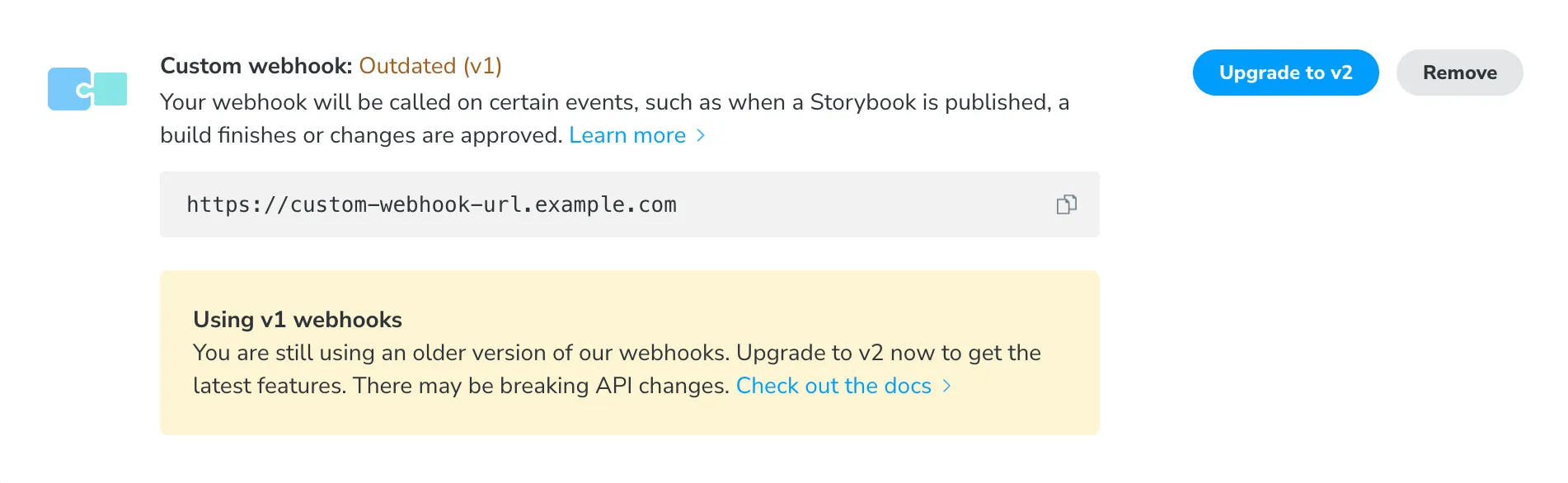

If you’ve been using a custom webhook for a long time, or used to have one in the past, your project might still be configured to receive an older type of webhook. In this case you’ll see a prompt like this:
You can either continue to use the existing integration, or upgrade your webhook to the latest version. As soon as you’ve upgraded, you’ll start to receive the updated request format, so your endpoint should already be setup to handle them.
Removing and recreating your webhook will not automatically update you to the new format.
Signed webhooks
Chromatic supports signed webhooks through an optional X-Webhook-Signature
header. Please contact us via in-app chat or email to enable signed webhooks on your account.
We’ve provided example code for handling these signatures here.
Build result and status codes
Update | result | status | Legacy status |
---|---|---|---|
🔵 Storybook published | n/a | PUBLISHED | n/a |
🔵 Ready for testing | n/a | PREPARED | n/a |
🔵 Tests in progress | n/a | IN_PROGRESS | n/a |
🌕 Ready for review (has changes) | SUCCESS | PENDING | BUILD_PENDING |
🟢 Passed (no changes) | SUCCESS | PASSED | BUILD_PASSED |
🟢 Accepted | SUCCESS | ACCEPTED | BUILD_ACCEPTED |
🔴 Denied | SUCCESS | DENIED | BUILD_DENIED |
🔴 Broken | CAPTURE_ERROR | BROKEN | BUILD_FAILED |
⚫️ Canceled | SYSTEM_ERROR | CANCELLED | BUILD_ERROR |
⚫️ Error | SYSTEM_ERROR | FAILED | BUILD_ERROR |
⚫️ Timed out | TIMEOUT | FAILED | BUILD_ERROR |
