Setup TurboSnap

Enable TurboSnap by running Chromatic’s CLI with the --only-changed option. Alternatively, you can use the onlyChanged option for the Chromatic GitHub action.

It will build and test stories that may have been affected by the Git changes since the last build. Depending on your project setup, you may need additional configuration.

Prerequisites

• Chromatic CLI 10.0+
• Storybook 6.5+
• Webpack or Vite based project (Vite is natively supported with Storybook 8+ and can be used in earlier versions with the vite-plugin-turbosnap)
• Stories correctly configured in Storybook’s main.js
• 10 successful builds on CI with at least one accepted
• For GitHub Actions: run on push rather than pull_request (learn more)
• UI Tests should be enabled

Configure

To enable TurboSnap for your project, add the --only-changed flag to your chromatic script, or add the onlyChanged: true option to your GitHub workflow config.

{
  "scripts": {
    "chromatic": "chromatic --only-changed"
  }
}

Or for GitHub Actions:

steps:
  # ...
  - name: Run Chromatic
    uses: chromaui/action@v1
    with:
      projectToken: ${{ secrets.CHROMATIC_PROJECT_TOKEN }}
      onlyChanged: true

You may need additional config in the following situations:

• You’re using --storybook-build-dir or -d to let Chromatic use a prebuilt Storybook
• You are using the staticDirs config in your main Storybook configuration
• You have other files outside the Webpack dependency tree which affect your stories (e.g., Sass or template files)
• You have files that should never trigger a re-test (e.g., in a monorepo)
• You want to enable or disable TurboSnap for specific branches

Jump to the recipes section for more information.

Verify that TurboSnap is working

The best way to see if TurboSnap is working is to inspect your CLI output. There are a couple of messages the CLI outputs of particular relevance:

Traversing dependencies for X files that changed since the last build

Found Y story files affected by recent changes

Tested A stories across B components; capture C snapshots in S seconds.

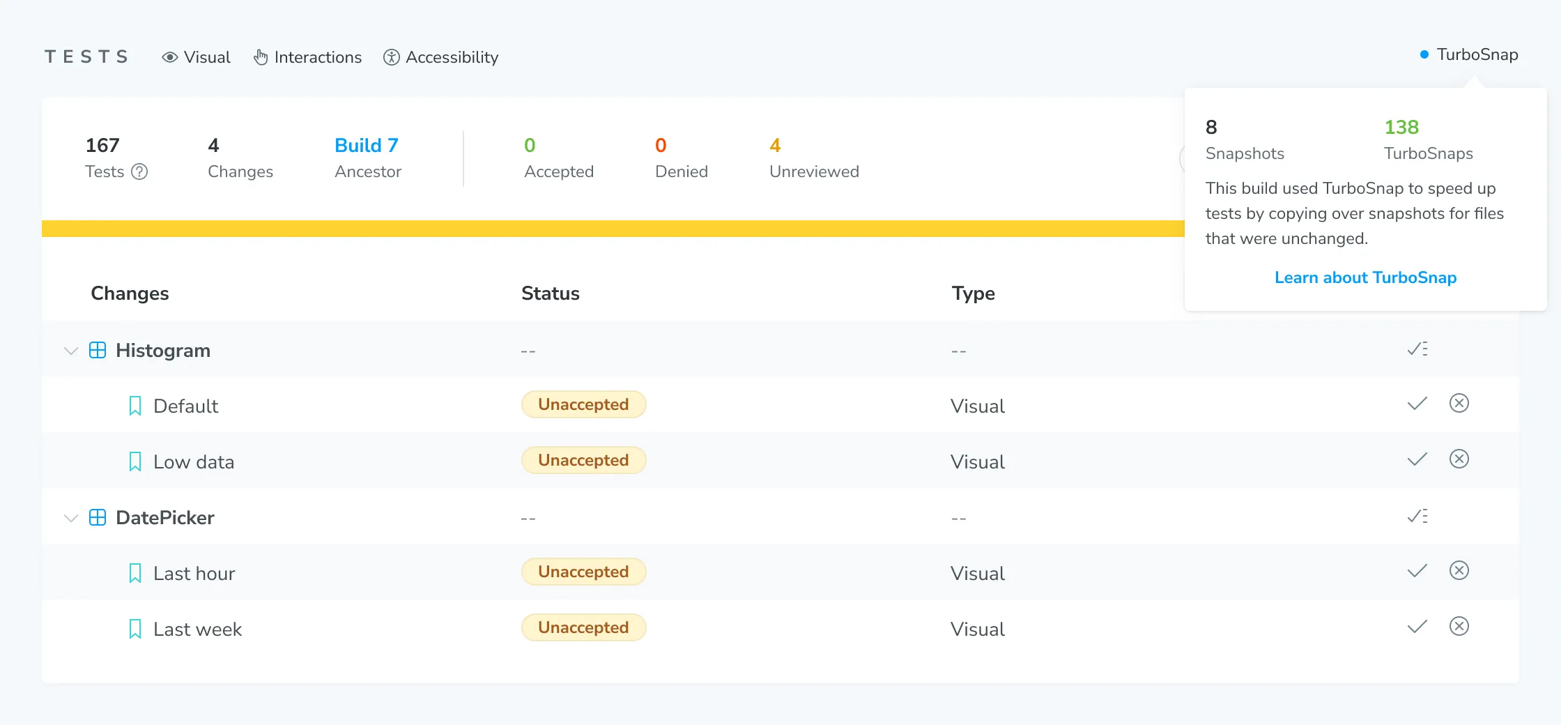

Once TurboSnap is activated, all subsequent builds will display an indicator with TurboSnap’s status. Find it on the Build page above your tests.

Recipes

A few common scenarios require additional configuration.

TurboSnap with prebuilt Storybook using Webpack

If you’re using --storybook-build-dir to provide a prebuilt Storybook, adjust your build-storybook script to include the --stats-json option (or --webpack-stats-json option for projects that haven’t migrated to Storybook 8+). If Chromatic builds your Storybook for you, this is unnecessary, and will take care of it. For example:

{
  "scripts": {
    "build-storybook": "build-storybook --stats-json"
  }
}

In Storybook 6.2, --webpack-stats-json must be set to the value of --output-dir (storybook-static by default). In Storybook 6.3+, the value can be omitted as it automatically uses the value of --output-dir. Note that --webpack-stats-json was not supported before Storybook 6.2 and, therefore, cannot be used with TurboSnap.

TurboSnap with prebuilt Storybook using Vite

For projects using Storybook versions prior to 8, use the vite-plugin-turbosnap. The plugin will automatically generate a stats file when you run the build-storybook command.

Vite is natively supported for Storybook 8 and later. To generate the stats file, use the --stats-json flag with the build-storybook command.

{
  "scripts": {
    "build-storybook": "build-storybook --stats-json"
  }
}

Specify a deviating Storybook base directory

If you’re using a prebuilt Storybook, and your build-storybook script was not executed from the same directory where you’re running chromatic, you’ll have to specify the relative path to the Storybook project root (where you run build-storybook from). For example, when your Storybook lives at ./services/webapp in your Git repository:

{
  "scripts": {
    // This would be a different package.json than the one with `build-storybook`
    "chromatic": "chromatic --only-changed --storybook-base-dir services/webapp"
  }
}

If you’re running chromatic from the same subdirectory as build-storybook, this should not be necessary, as Chromatic will auto-detect the correct base dir.

Specify external files to trigger a full re-test when they change

TurboSnap relies on Webpack’s dependency graph. That means if you’re using files processed externally to Webpack, with the output consumed by Webpack, you’ll need to trigger a re-test when they change. This includes static assets like fonts, images and CSS files, as well as files that compile to static assets such as Sass, so long as they are not processed through a Webpack loader.

For example, if you use an external Sass compiler (not sass-loader) to compile .sass files to .css files (which may then be consumed by Webpack), then a change to a .sass file will not match any dependencies, preventing stories from being captured (i.e., snapshotted).

To work around this, run Chromatic’s CLI with the --externals flag to specify one or more globs of “externally processed” files. For example:

chromatic --only-changed --externals "*.sass" --externals "public/**"

If you’ve set up TurboSnap with Chromatic’s GitHub action, you can extend your existing workflow and provide the externals option as follows:

# .github/workflows/chromatic.yml

# Other necessary configuration

jobs:
  chromatic-deployment:
    steps:
      # 👇 Adds Chromatic as a step in the workflow
      - name: Run Chromatic
        uses: chromaui/action@v1
        # Options required to the GitHub chromatic action
        with:
          # 👇 Chromatic projectToken, refer to the manage page to obtain it.
          projectToken: ${{ secrets.CHROMATIC_PROJECT_TOKEN }}
          externals: |
            *.sass
            public/**

Add staticDirs to external files

If you are using the staticDirs option in your main Storybook config (introduced in Storybook 6.4), you should flag those as externals as well.

Whereas, the deprecated --static-dir (-s) Storybook CLI flag is auto-detected, the config option in main.js is not.

Avoid re-testing dependent stories when certain files changed

You may have certain files in your Webpack dependency graph which are (indirectly) used by a story but which you know are unlikely to cause a meaningful (visual) change. A typical example is a global decorator that imports some utility files. Since a global decorator applies to all stories, changing such a utility file would cause the entire Storybook to be re-tested. You can avoid that problem using the --untraced flag:

chromatic --only-changed --untraced ".storybook/decorators/*.js"

TurboSnap works by taking a list of changed files in your Git repository and tracing those down to a set of story files. The --untraced flag allows you to skip tracing dependencies for certain files. That means any file in the Webpack dependency graph matching --untraced will be ignored, and thus stories (indirectly) depending on it will not get marked for re-testing at that time. However, those stories still might get marked as a result of tracing another changed file (via a different dependency chain).

Keep in mind that your tests will be less reliable when using --untraced because it may skip stories that actually did have meaningful changes. It’s recommended to disable TurboSnap on your main branch (see below) so that you can at least catch such changes.

--untraced is particularly useful when you’re importing “index” files that re-export a bunch of underlying modules. A change to any of these modules would cause any file that imports the index file to be considered “dirty”, even if it doesn’t actually use the changed module. By using --untraced on the index file, all of its re-exported modules are automatically untraced as well, as long as they aren’t imported directly.

Avoid re-testing on changes to package control files

When certain files that pertain to node_modules (package.json, package-lock.json, yarn.lock) change, TurboSnap attempts to determine an exact set of changed dependencies and trace those dependencies to associated stories. We rely on lock file(s) to get actual version numbers rather than semver ranges. TurboSnap retrieves versions for both the current state of the repository and for each baseline commit. If a lockfile is missing or out of sync with package.json, TurboSnap cannot do this, and we’ll have to re-test all stories.

Similar to source code changes, the --untraced flag can also be used to ignore dependency updates (e.g., --untraced "services/backend/package.json"). That way, any dependency updates in that package will not be considered when applying TurboSnap. A typical use case scenario would be to untrace the services/backend/** directory and ignore any changes, including dependencies. If you need fine-grained control over what is untraced, you can also enable it for a specific lockfile, with the caveat that untracing the root-level lockfile will ignore any dependency changes in all packages that rely on it (i.e., sub-packages that don’t have their lockfile).

Enable or disable for specific branches

To enable TurboSnap for specific branches, pass a glob to --only-changed (e.g., chromatic --only-changed "feature/*"). Use a negating glob (e.g. chromatic --only-changed "!(main)") to enable all but certain branches. See the globs guide for details.

Using TurboSnap in a monorepo

TurboSnap will make working in a monorepo more efficient. Because it detects affected stories based on the actual files changed, pushing a commit that touched only backend code will run faster in CI and not use up your snapshot quota. However, it will still build and publish your Storybook. To avoid that, you can skip Chromatic entirely, speeding up your CI pipeline even more.

When configuring TurboSnap in a monorepo, it’s important to ensure that Chromatic understands where your Storybook project is relative to where you’re executing your chromatic script. This is particularly important because TurboSnap relies on the correct file path resolution to determine which stories have changed and which stories can be skipped. If you’re running a subproject out of a monorepo, chances are that you’re executing your script from the root of your repository, in which case there are extra considerations to take when configuring TurboSnap.

Chromatic’s suggested best practice when executing from your repo root is to set your --storybook-base-dir and --storybook-config-dir flags. For example, when your Storybook project is located in the packages/webapp dir of your repo, you’d update your script to reflect the following:

{
  "scripts": {
    "build-storybook": "build-storybook",
    "chromatic": "chromatic --only-changed --storybook-base-dir packages/webapp --storybook-config-dir packages/webapp/.storybook"
  }
}

This would ensure we’re checking packages/webapp for your Storybook project instead of your root directory, which may end up detecting unexpected package control files for other subprojects. Even though the default config directory is being used, you’ll want to ensure to set --storybook-config-dir as well since this path is relative to your current working directory.

If you’re using the --externals or --untraced flags in a monorepo, you’ll want to be mindful that the paths specified are relative to your repository root. For example, let’s say you want to ignore some global decorators in your packages/webapp project:

chromatic --only-changed --untraced "packages/webapp/.storybook/decorators/*.js --storybook-base-dir packages/webapp --storybook-config-dir packages/webapp/.storybook"

Using the path from the project’s root (.storybook/decorators/*.js) would result in the files still getting traced by TurboSnap. Keep in mind you can use a pattern such as --untraced "**/.storybook/decorators/*.js", this would work with TurboSnap and would result in changes to the directory going untraced.

If your monorepo has stories from multiple subprojects coming together in one Storybook, you may consider running Chromatic on a subset of your Storybook. With TurboSnap enabled, that happens automatically. For more fine-tuned control over the subset of stories that get considered for testing, explore using the --only-story-files or --only-story-names options.

Compatibility

GitHub pull_request triggers

GitHub workflows have various “triggers” that a Chromatic action could run on. We recommend sticking to push unless you know what you’re doing.

TurboSnap is not compatible with the pull_request trigger or its variations. The reason is that pull_request workflows run against an ephemeral merge commit, which doesn’t exist in your Git history yet, but would if you were to merge the PR at that point.

If your pull requests trigger multiple builds before being merged, Chromatic would not be able to find those earlier builds because your Git history does not actually contain the commit for which you ran a Chromatic build.

Our own GitHub Action works around that by using pull_request.head.sha as the commit hash for the build, even though it’s really running against the merge commit so that we can still track baseline history. However, this discrepancy means TurboSnap would be looking at a different set of changed files than were actually in the recorded commit (which depends on the state of your base branch), yielding unpredictable results.
